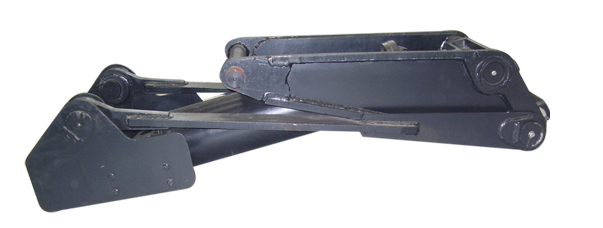

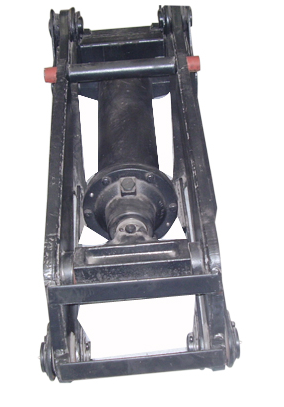

KRM160S Hoist Unit

Adopt the cylinder of the forward-link dump mechanism, transverse stiffness is preferably, small elevating force factor, Application for the medium-sized and the heavy-duty dump trucks.


Adopt the CAD, CAM assistant design, finite element analysis, optimize the lifting mechanism.


R&D 11 kinds lifting mechanism, complete specification, satisfy 2-35T lifting weight.


Collect
  • Product Introduction

Model

G.V.W

Rated Lifting Capacity (kg)

Cylinder Spec. (mm)

Mechanism Dimension

L x W x H (mm)

160S

11000-17000

6000-8000

D160 x d70 x 570

1420 x 475 x 330

160c

15000-24000

9000-14000

D160 x d70 x 750

1700 x 485 x 400
