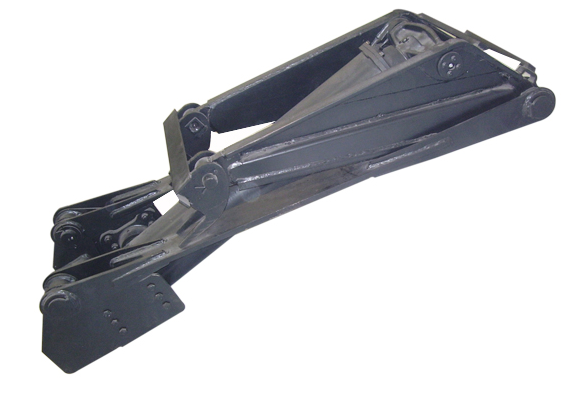

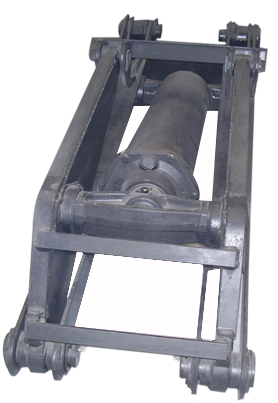

KRM201 Hoist Unit

Adopt the cylinder of the forward-link dump mechanism, transverse stiffness is preferably, small elevating force factor, Application for the medium-sized and the heavy-duty dump trucks.


Adopt the CAD, CAM assistant design, finite element analysis, optimize the lifting mechanism.


R&D 11 kinds lifting mechanism, complete specification, satisfy 2-35T lifting weight.


Collect
  • Product Introduction

Model

G.V.W

Rated Lifting Capacity (kg)

Cylinder Spec. (mm)

Mechanism Dimension

L x W x H (mm)

201

25000-32000

16000-18000

D200 x d100 x 930

1880 x 580 x 405
